Vertical Injection Air Over Oil Cylinder Machine

BETA 800H

Vertical Injection Air Over Oil Cylinder Machine

Intuitive touch screen operation.
Air over oil cylinder gives large clamping forcefor larger part.
LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.
The gear pump is made of hard-wearing material，which is stable，injection volume accuracy ±0.1g，maximum shot size is 5.8g/s.
Injection pressure range 1~50kg, which can be controlled by the pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.
Three thermal control zones for precise melt control.
Equipped with light curtain and dual palm buttons for operator safety.
Mechanical ejection system and control for pneumatic ejection.

Application

LPMS? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

The benefit of vertical injection is that when smaller parts allow the cavity to be split into two or four cavities. This allows shorter runners and higher output per cycle. It’s suitable for multiple cavity mold for cable, wire harness, LED, etc.

Specification

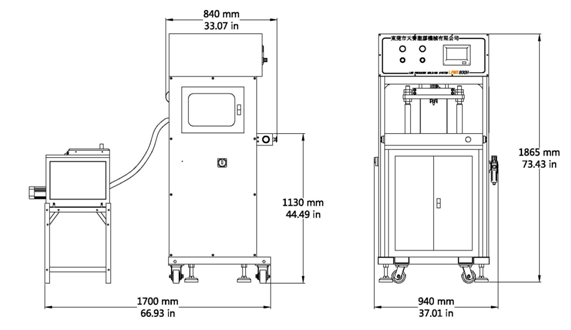

Machine Size / Weight	940 mm x 840 mm x 1865 mm / 420 kg 37.01 in x 33.07 in x 73.43 in / 926 lbs
Footprint	940 mm x 1700 mm \| 37.01 in x 66.93 in
Working Station Height	1130 mm \| 44.49 in
Packing Size / Weight	1200 mm x 1250 mm x 2000 mm / 455 kg 47.24 in x 49.21 in x 78.74 in / 1003 lbs
Melting Tank[1]	Melt on demand 7 liter x1
Auto Feeding System	Optional
Gun Model & Tip	LPMS-G08 x 1 / 36.4°
Heated Hose [2]	1.6 mx 1
Electricity[3]	200-240VAC/1 Phase/ 50 Hz
Temperature Control Zones	3
Temperature Range	Ambient up to 250°C / 485°F
Max.Power	4.5 Kw
Min. Air Pressure	0.5MPa \| 73 Psi
Air Consumption	0.1 m³/min \| 3.5 ft³/min
Clamping	Air Over Oil Cylinder
Clamping Force	5 Tons (Option 10 Tons)
Clamping Stroke	150 mm \| 5.91 in
Control System	7 ”HMI , PLC controlled
Safety Protection	Light curtain , Emergency Stop buttons
Std. Mold Set Size	230 mm x120 mm x150 mm / 25 kg 9.06 in x4.72 in x5.91 in / 55.12 lbs
